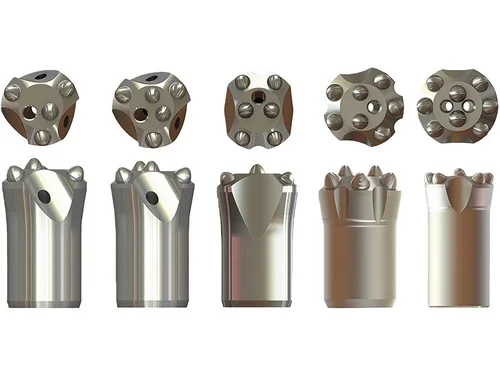

Top Hammer Drilling Tools
Top hammer drilling tools operate by transmitting impact energy directly from the rock drill’s piston to the drill shank. The impact generates stress waves that travel through the drill string and reach the bit, where the bit fractures the rock through repeated percussive blows. At the same time, a rotation unit drives the bit to turn, combining impact breaking with cutting action for efficient rock penetration and borehole formation.
SPM supplies both tapered and threaded top hammer drilling tools, allowing the drill string to be matched to different rock conditions, hole diameters, drilling depths and rock drill configurations.
Top hammer tools are suitable for rock formations across a wide hardness range and perform particularly well in medium-hard to hard strata. They are widely used in open-pit mining and quarry drilling, underground mine development, rock bolting, tunnel excavation, and foundation construction.
-
Tapered Drill Bits For Tapered Drilling Systems

Tapered drill bits are available in different diameters, taper angles and button configurations for rock drilling in mining, quarrying, tunneling and construction applications.
-
Tapered Drill Rods H22 / H25 Options

Tapered drill rods are designed to work with matching tapered bits and are available in different rod sizes, taper angles and lengths for varied drilling conditions.
-
Threaded Drill Bits R / T Thread Series

Threaded drill bits cover multiple thread systems and bit diameters, with different button layouts and flushing configurations for production and development drilling.
-
Threaded Drill Rods Matched Drill String Components

Threaded drill rods are used to transmit impact and rotation through the drill string, with thread types and lengths selected according to the rock drill and drilling depth.
Detailed dimensions, part numbers, thread systems, rod lengths, bit configurations and additional compatibility information are available in the complete Top Hammer Drilling Tools catalog.
